Flat roof insulation

U=0,15 W/(m2*K), Rt=6,8 (m2*K)/W

Insulation of a flat roof with standard layering comprises VestaEco WALL and LDF boards laid on the slab. The rigid insulation boards enable walking on the roof surface.

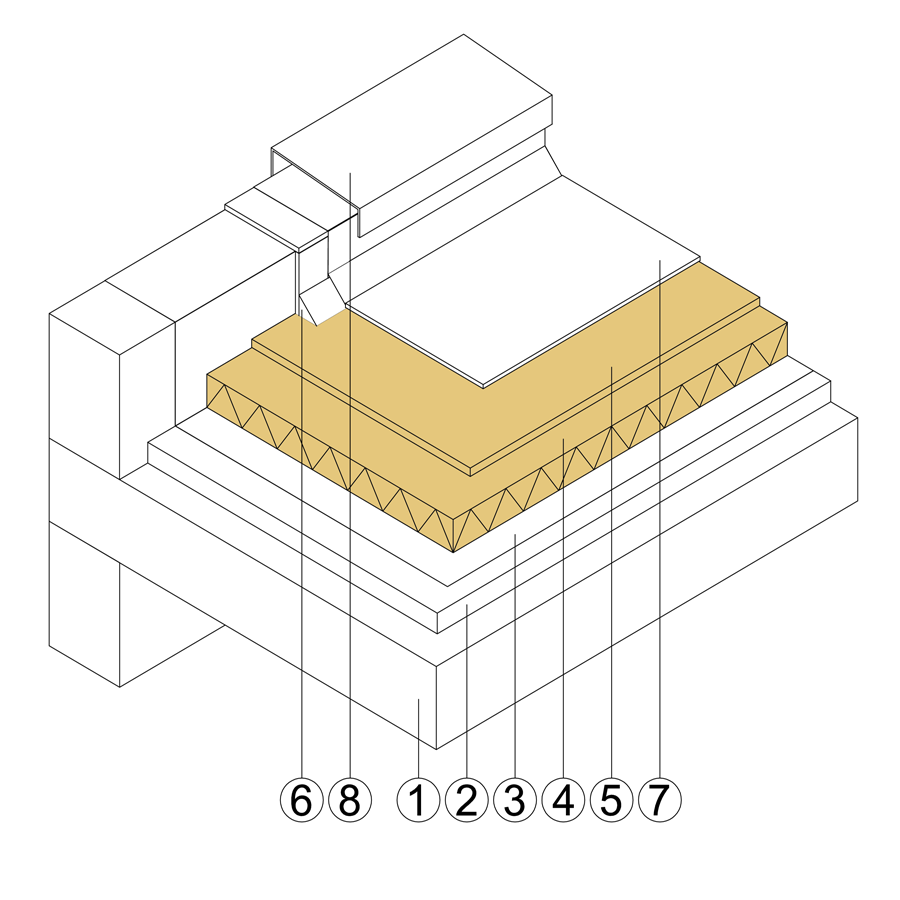

Layer description:
  1. Ceramic slab
  2. Pitch layer
  3. Tight vapor barrier Eurovent STANDARD ALU
  4. VestaEco WALL 200 mm
  5. VestaEco LDF 30 mm
  6. Thermal insulation wedge
  7. EPDM membrane
  8. Flashing
